Overview |

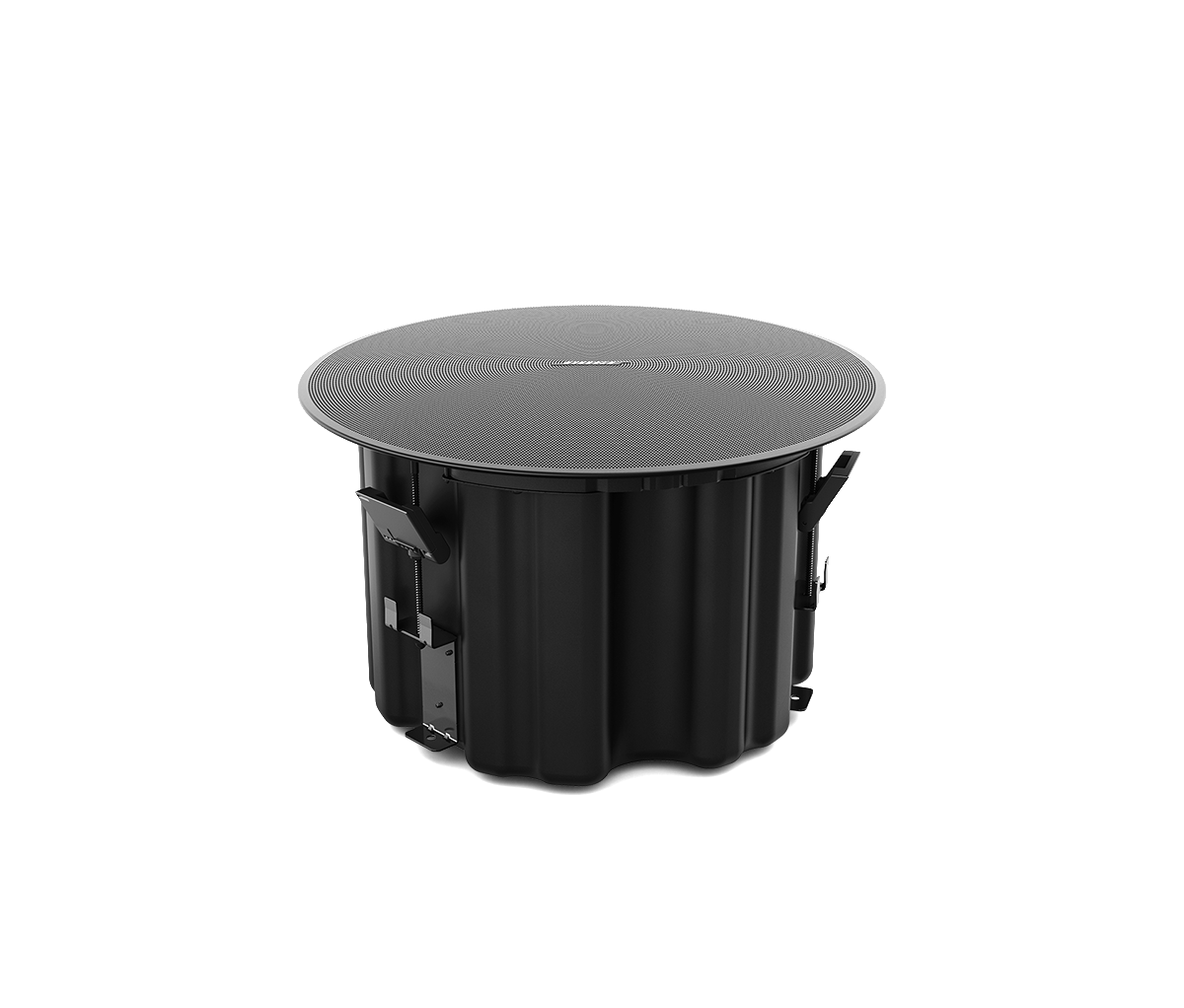

| 풍부한 저음 성능을 제공하는 180와트 보스 프로페셔널 디자인맥스 DM8C-SUB 서브우퍼는 모든 상업용 사운드 설치에 즉각적인 인상적인 베이스를 제공합니다. 천장 장착형 DM8C-SUB는 8인치 우퍼와 38Hz – 155Hz 주파수 범위를 가지며, QuickHold 장착 팔을 통해 쉽게 설치할 수 있습니다. 디자인맥스 서브우퍼는 모든 디자인맥스 설치를 보완하고 향상시킵니다. |
FEATURES | ||
| Applications다양한 용도를 위해 설계되었습니다.
| |
SPECS | ||
Technical Specification | ||
COMPLIANCE | ||
Safety Agency Ratings UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant | ||
PHYSICAL | ||
Colors Black (RAL 9005), white (RAL 9003), paintable | Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan | |
Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether | Environmental Indoor only | |
Ceiling Cutout 13.8 in (349 mm) | Suspension/Mounting (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points | |
Logo Rotatable, removable | Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F) | |
Product Dimensions (H×W×D) 16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth | Net Weight 21.9 lb (9.9 kg), loudspeaker with grille (single) / 2.2 lb (1.0 kg), tile bridge (single) | |
Shipping Weight 28.5 lb (12.9 kg) | ||
PERFORMANCE | ||
Frequency Range (-10 dB) 38 Hz – 115 Hz | Coverage, Horizontal Omnidirectional below 200 Hz | |
Calculated Maximum SPL @ 1 m 112 dB | Nominal Impedance 8 Ω (transformer bypassed) | |
Power Handling, long-term continuous 180 W | Power Handling, Peak 720 W | |
Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available | Sensitivity (SPL/1 W at 1 m) 89 dB | |
Transformer Taps, 100V 40, 80, 150 W, bypass | Transformer Taps, 70V 20 W, 40 W, 80 W, 150 W, bypass | |
Coverage, Vertical Omnidirectional below 200 Hz | ||
TRANSDUCERS | ||
Crossover 80 Hz – 200 Hz via active crossover in DSP | Driver Protection Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter | |
Low-Frequency 1 × 8 in (203 mm) woofer | ||
VIDEOs | ||
 |  |  |
Product codes | ||
829380-0110 DESIGNMAX DM8C-SUB SINGLE BLK | 829380-0210 DESIGNMAX DM8C-SUB SINGLE WHT | |
Included in Packaging | ||
(1) tile bridge (1) cutout template | ||
