Overview |

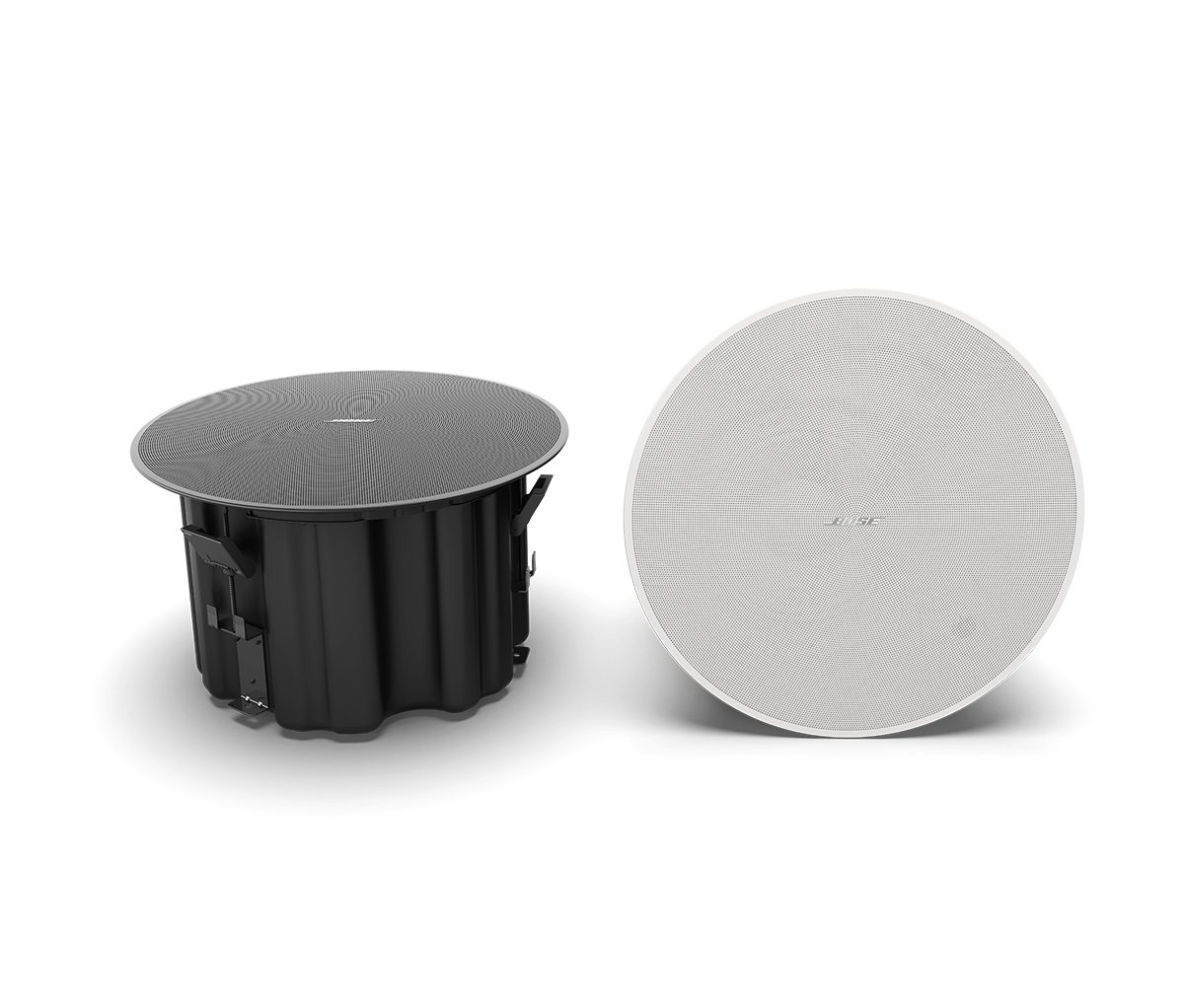

| 코엑셜 2웨이 드라이버를 갖춘 150와트 Bose Professional DesignMax DM8C 스피커는 전경 음악에 적합한 강력한 SPL을 제공하며, 모든 상업용 사운드 설치를 보완하는 프리미엄 미학을 가지고 있습니다. DM8C는 2웨이 8인치 우퍼와 중앙 발사형 코엑셜 1인치 압축 드라이버를 특징으로 하여 52 Hz – 20 kHz의 주파수 범위를 제공합니다. 천장 장착형 DM8C는 QuickHold 장착 팔을 통해 쉽게 설치됩니다. |
FEATURES | ||
| Applications다양한 용도를 위해 설계되었습니다.
| |
SPECS | ||
Technical Specification | ||
COMPLIANCE | ||
Safety Agency Ratings UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant | ||
PHYSICAL | ||
Colors Black (RAL 9005), white (RAL 9003), paintable | Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan | |
Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether | Environmental Indoor only | |
Ceiling Cutout 13.8 in (349 mm) | Suspension/Mounting (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points | |
Logo Rotatable, removable | Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F) | |
Product Dimensions (H×W×D) 16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth | Net Weight 21.1 lb (9.6 kg), loudspeaker with grille / 2.2 lb (1.0 kg), tile bridge | |
Shipping Weight 28.0 lb (12.7 kg), single | ||
PERFORMANCE | ||
Frequency Range (-10 dB) 52 Hz – 20,000 Hz | Coverage, Horizontal 135° conical | |
Calculated Maximum SPL @ 1 m 113 dB | Nominal Impedance 8 Ω (transformer bypassed) | |
Power Handling, long-term continuous 150W | Power Handling, Peak 600W | |
Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available | Sensitivity (SPL/1 W at 1 m) 91 dB | |
Transformer Taps, 100V 5, 10, 20, 40, 80 W, bypass | Transformer Taps, 70V 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass | |
Coverage, Vertical 135° conical | ||
TRANSDUCERS | ||
Crossover 1.5 kHz, passive 2-way crossover | Driver Protection Recommended high-pass protection 48 Hz with recommended 24 dB/octave filter; Overload protection; Resistor-network power reduction with automatic reset | |
High-Frequency 1 × 1 in (25 mm) compression driver, coaxial center-firing | Low-Frequency 1 × 8 in (203 mm) woofer | |
VIDEOs | ||
 |  |  |
Product codes | ||
802080-0110 DESIGNMAX DM8C SINGLE BLK | 802080-0210 DESIGNMAX DM8C SINGLE WHT | |
Included in Packaging | ||
(1) tile bridge (1) cutout template | ||
