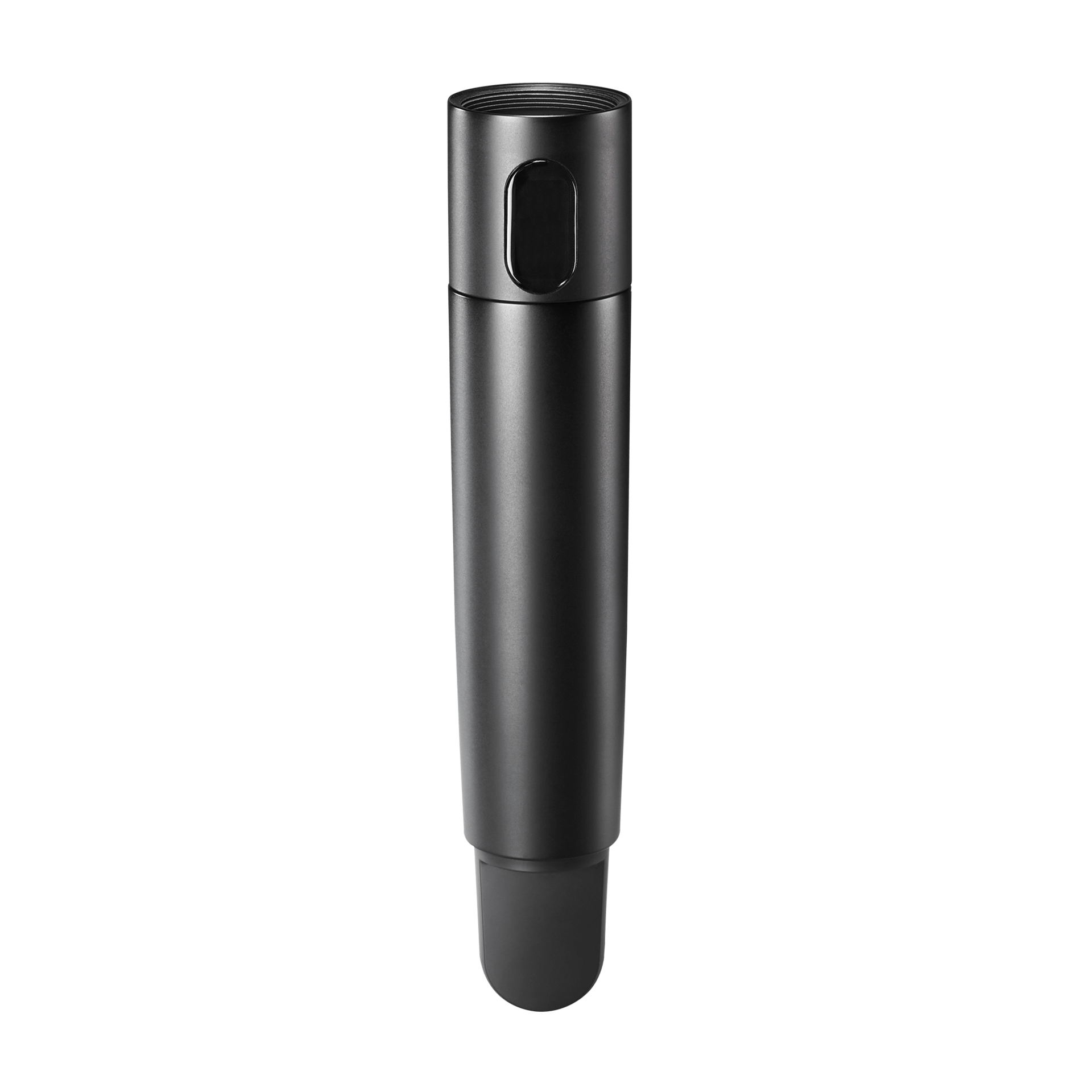

/ 3000 Series (fourth generation) handheld microphone/transmitter body

ATW-T3202



mobile background
/ Overview

ATW-T3202


3000 시리즈(4세대) 핸드헬드 마이크/송신기 본체(핸들만 해당, 캡슐은 별도 판매)로, 업계 표준 나사 마운트를 채택하여

ATW-C510, ATW-C710, ATW-C4100, ATW-C6100, ATW-C3300, ATW-C5400 교체형 무선 마이크 캡슐 또는 기타 호환 가능한 캡슐과 함께 사용할 수 있습니다.
AT8456a Quiet-Flex™ 스탠드 클램프가 포함됩니다.

Features


  • 독특한 다기능 버튼은 간섭이 발생할 경우 송신기와 수신기 모두에서 백업 주파수로 전환하는 데 사용할 수 있습니다.

  • OLED 화면을 통해 주요 설정과 알림을 최적의 가시성으로 확인할 수 있습니다.

  • 매우 낮은 핸들링 노이즈를 제공하며, 6종의 A-T 교체형 마이크 캡슐 및 기타 호환 가능한 캡슐과 함께 사용할 수 있는 업계 표준 나사 마운트를 포함합니다.

  • 충전 단자는 선택 사양인 ATW-CHG3 및 ATW-CHG3N 스마트 충전 도크와 호환되어 NiMH 배터리를 충전할 수 있습니다.



Specifications
Handheld Transmitter
RF Power OutputHigh: 30 mW, Low: 10 mW (switchable), at 50 Ω
Spurious EmissionsFollowing Federal and National Regulations
Microphone ElementInterchangeable industry-standard thread
Battery TypeTwo 1.5V AA, not included
Battery LifeHigh: 8.0 hours / Low: 9.0 hours (alkaline)
High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage and environmental conditions.
Dimensions193.0 mm long, 37.0 mm maximum diameter
Net Weight200 g
Accessories IncludedAT8456a Quiet-Flex™ stand clamp; ⅝"-27 male to ⅜"-16 female threaded screw adapte
